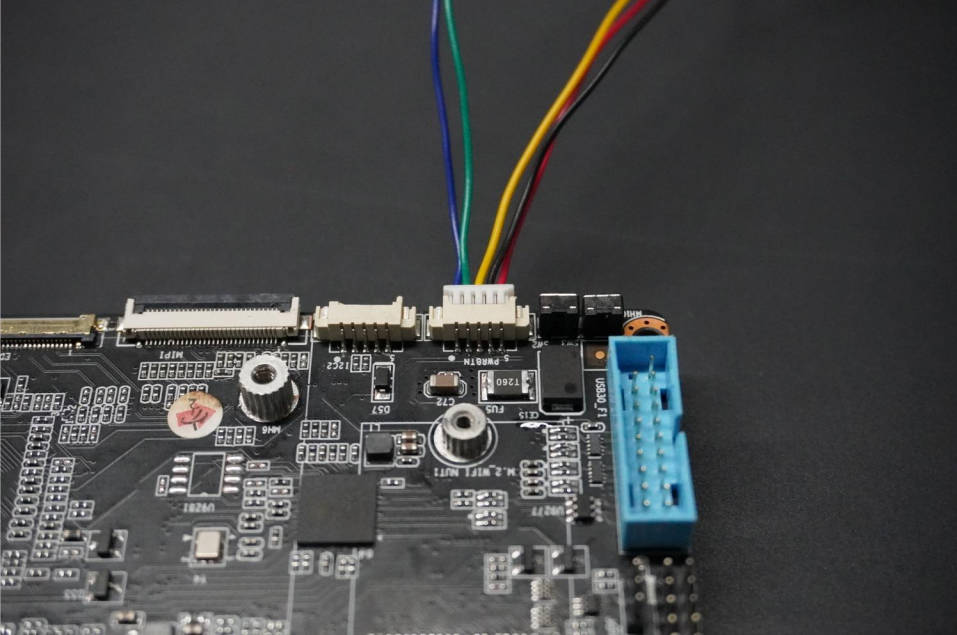

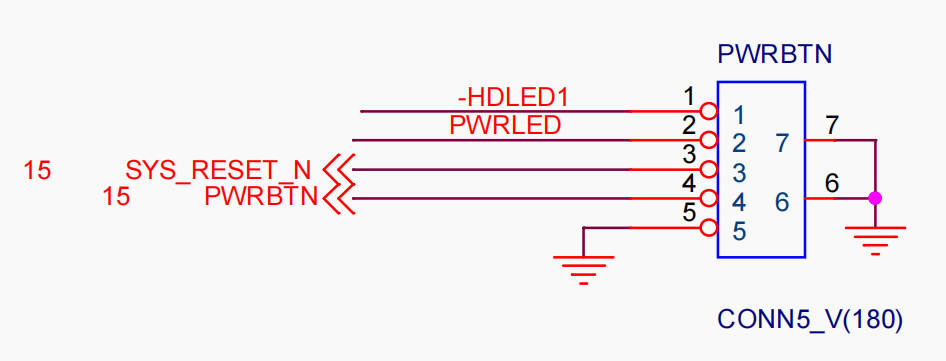

¶ Hardware Connection
1 Blue Line --> HDLED (Hard Drive Light/Red Light)
2 Green Line --> PWRLED (Power indicator/Green light)
3 Yellow Line --> SYS_RESET_N (Reboot)
4 Black Line --> PWRBTN(Power off)
5 Red Line --> GND
¶ LED light control

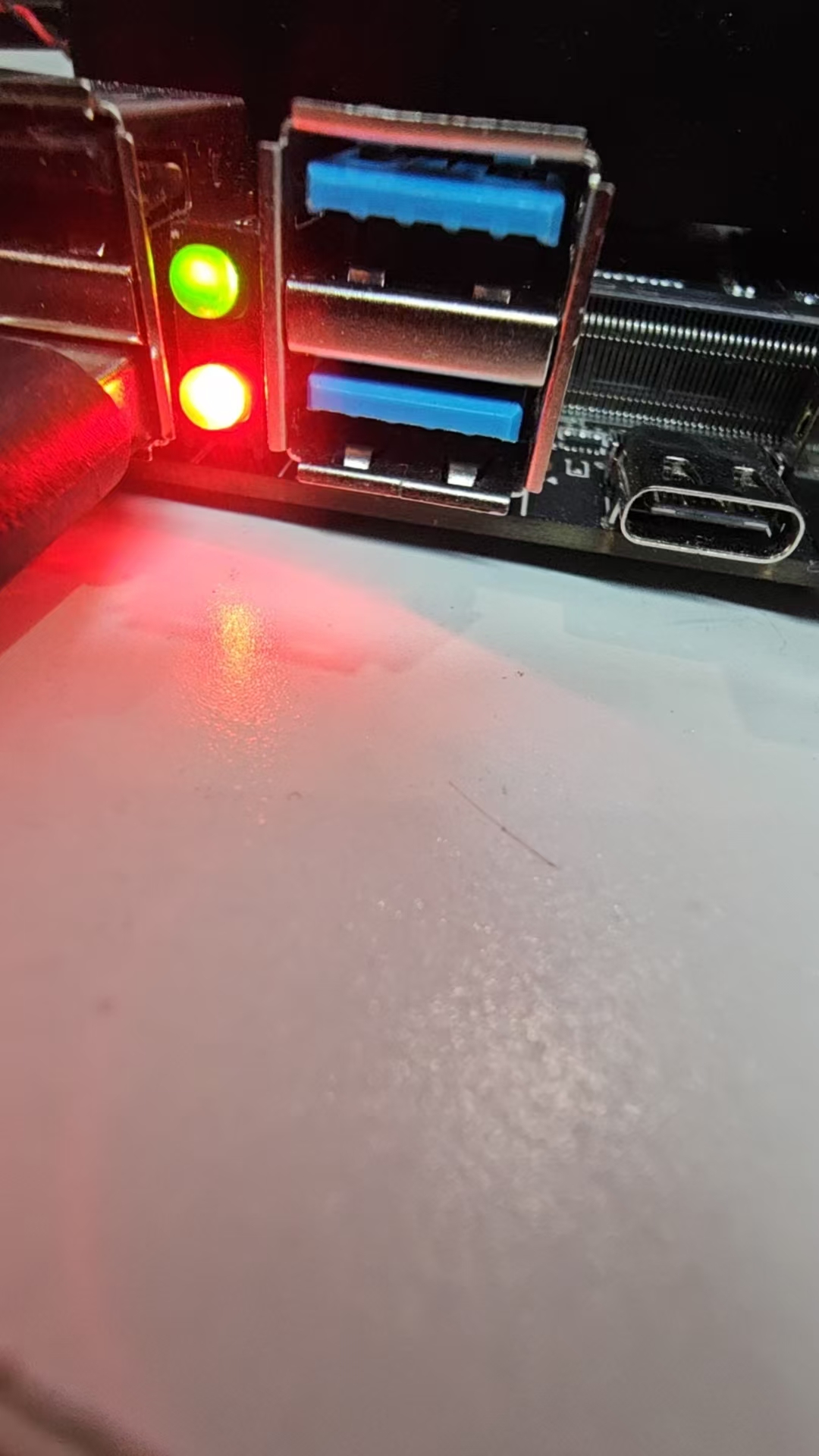

¶ Power Light (Green Light)
Connect the PWRLED pin to the GND pin; the green light will turn off.
¶ Hard Drive Light (Red Light)
Connect HDLED pin to the GND pin to turn the red LED on or off.
¶ Power off/Restart control
¶ Power off
Connect the PWRBTN pin to the GND pin to power off the K1 motherboard system.
¶ Restart
Connect the SYS_RESET_N pin to the GND pin, and the K1 motherboard system will restart.
