¶ 1 Graphical Interface Usage
¶ 1.1 Hardware Connection

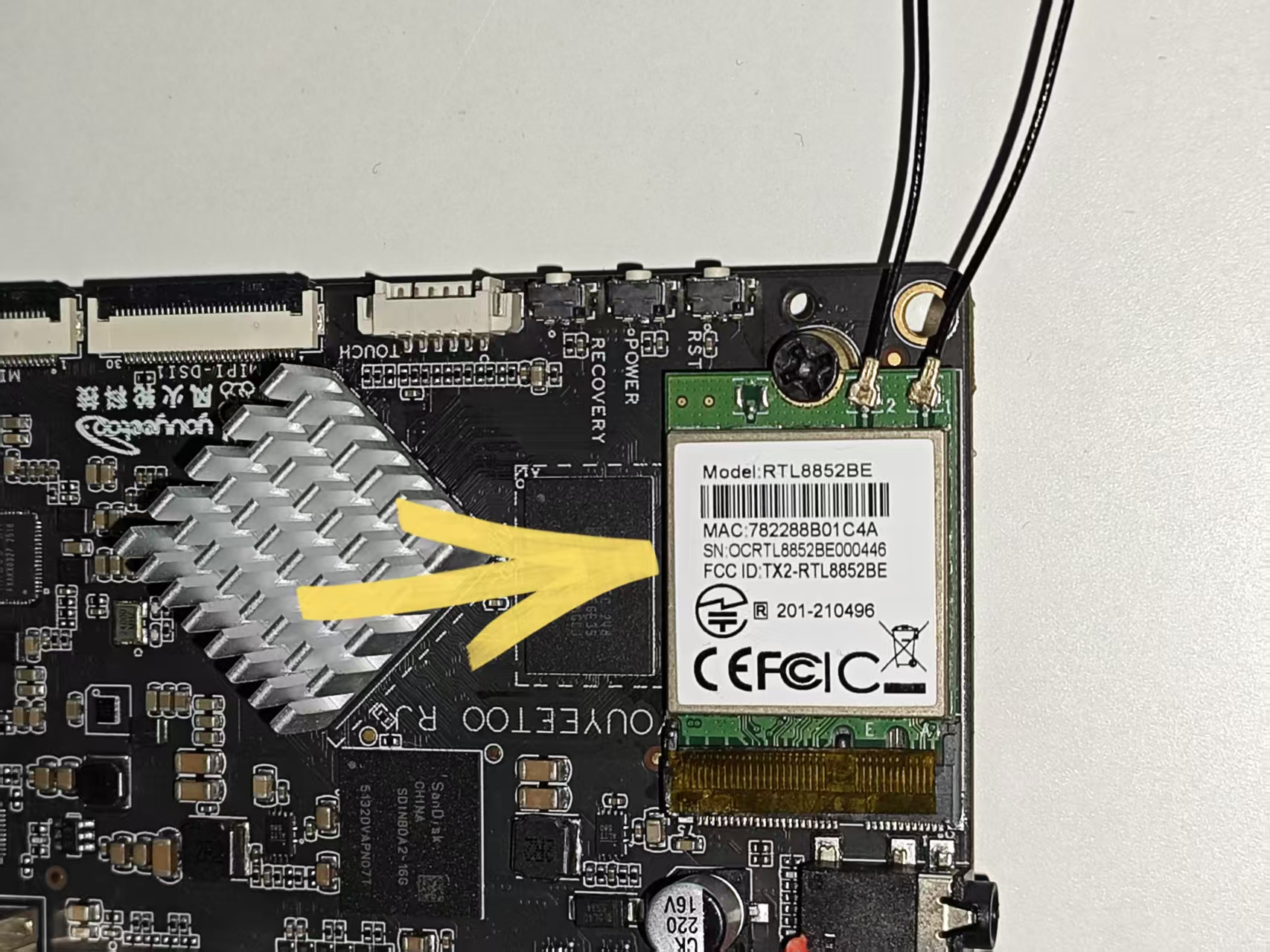

Connect the RTL8852BE module to the youyeetooRJ development board, as shown in the image below:
Power on the device after connecting the hardware.
¶ 1.2 Using WIFI
The demonstration animation is as follows:
¶ 1.3 Using Bluetooth
The demonstration animation is as follows:
¶ 2 Command Line Usage
¶ 2.1 Introduction to the RTL8852 Module
The RTL8852 module is based on Realtek... The RTL8852BS chip is used to develop a high-performance wireless communication module that supports the latest IEEE 802.11ax standard (also known as Wi-Fi 6) and Bluetooth 5.2 technology.
-
M.2 2230 S2 key interface A+E card
-
Operating frequency: 2.4 ~ 2.4835GHz or 5.15 ~ 5.85GHz
-
Supports dual-band 2T2R mode, bandwidth of 20/40/80MHz
-
Supports 802.11ax, with OFDMA and MU-MIMO functions
-
Dual-mode Bluetooth support: Simultaneously supports Bluetooth Low Energy (LE) and Basic Rate/Enhanced Data Rate (BR/EDR)
-
Connects to an external antenna via MHF4/IPEX4 connector
Actual image:
¶ 2.2 Connecting to WIFI
¶ 2.2.1 Viewing Wireless Network Card Nodes
ifconfig -a
¶ 2.2.2 Connecting to a Specific WIFI via Command Line
nmcli dev wifi
ifconfig p2p0 up
sudo nmcli dev wifi connect "WIFI NAME" password "WIFI PASSWORD" ifname p2p0
¶ 2.3 Connect to BT
bluetoothctl
power on
agent on
default-agent
scan on
trust 00:11:22:33:44:55
pair 00:11:22:33:44:55
connect 00:11:22:33:44:55
