¶ 03 Video Input
Video input is the process in which Pico-G1 receives video data over the MIPI interface and stores it in a designated memory area.

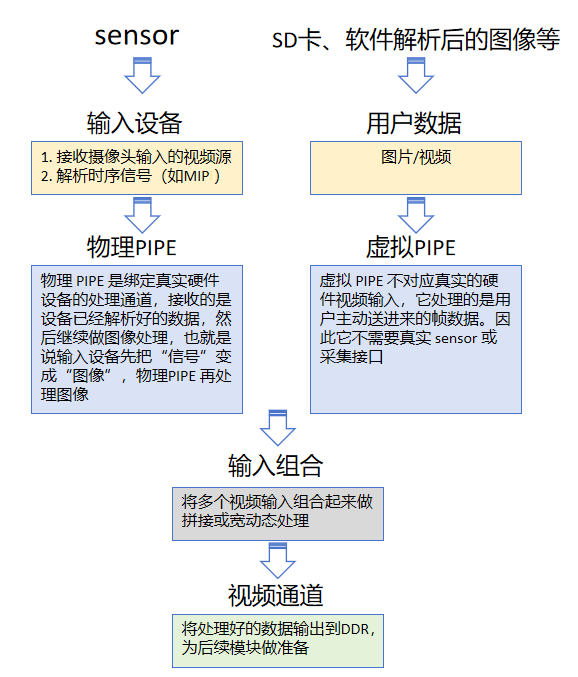

¶ 1 The Video Input System
¶ 1.1.1 Typical Video Input Scenarios
- Scenario 1: real camera input
Camera / sensor -> video input device parses the timing -> physical PIPE processes the image -> channel crops/outputs -> DDR -> VPSS / encoder / display
- Scenario 2: multi-camera stitching / wide dynamic range
Multiple camera inputs -> multiple devices / multiple PIPEs -> a grp defines the combination -> stitch / WDR joint processing -> channels output to DDR
- Scenario 3: software frame injection
A program generates or reads one frame -> a virtual PIPE receives it -> image processing -> channel output -> consumed by later modules
¶ 2 Video Input API Reference
¶ 2.1 API Overview
API reference
• xmedia_vi_init：initialize VI.
• xmedia_vi_exit：de-initialize VI.
• xmedia_vi_set_dev_config：set VI device attributes.
• xmedia_vi_get_dev_config：get VI device attributes.
• xmedia_vi_enable_dev_quick_start：enable quick start for a VI device.
• xmedia_vi_set_dev_mipi_phy_config：set manual MIPI PHY configuration for a VI device.
• xmedia_vi_enable_dev：enable a VI device.
• xmedia_vi_disable_dev：disable a VI device.
• xmedia_vi_set_dev_bind_pipe：bind a dev to a pipe one-to-one.
• xmedia_vi_set_dev_unbind_pipe：unbind a dev from a pipe.
• xmedia_vi_get_pipe_by_dev：get the pipe bound to a dev.
• xmedia_vi_set_grp_config：set the configuration of a VI compositing group.
• xmedia_vi_get_grp_config：get the configuration of a VI compositing group.
• xmedia_vi_create_pipe：create a VI PIPE.
• xmedia_vi_destroy_pipe：destroy a VI PIPE.
• xmedia_vi_get_pipe_config：get the configuration of a VI PIPE.
• xmedia_vi_start_pipe：start a VI PIPE.
• xmedia_vi_stop_pipe：stop a VI PIPE.
• xmedia_vi_set_user_pic：set a user picture.
• xmedia_vi_enable_user_pic：enable user-picture insertion on a VI PIPE.
• xmedia_vi_disable_user_pic：disable user-picture insertion on a VI PIPE.
• xmedia_vi_set_pipe_crop_attr：set the crop attributes of a physical VI PIPE.
• xmedia_vi_get_pipe_crop_attr：get the crop attributes of a physical VI PIPE.
• xmedia_vi_set_pipe_frame_dump_attr：set the frame dump attributes of a physical VI PIPE.
• xmedia_vi_get_pipe_frame_dump_attr：get the frame dump attributes of a physical VI PIPE.
• xmedia_vi_acquire_pipe_frame：acquire a frame from a physical VI PIPE.
• xmedia_vi_release_pipe_frame：release a frame acquired from a physical VI PIPE.
• xmedia_vi_set_pipe_frame_source：set the data source of a physical VI PIPE.
• xmedia_vi_get_pipe_frame_source：get the data source of a physical VI PIPE.
• xmedia_vi_send_pipe_frame：send frame data through a VI PIPE.
• xmedia_vi_set_pipe_compress_mode：set the compression mode of a physical VI PIPE.
• xmedia_vi_get_pipe_compress_mode：get the compression mode of a physical VI PIPE.
• xmedia_vi_set_pipe_frame_rate：set frame-rate control for a physical VI PIPE.
• xmedia_vi_get_pipe_frame_rate：get frame-rate control for a physical VI PIPE.
• xmedia_vi_set_pipe_low_delay_attr：set the low-latency attributes of a physical VI PIPE.
• xmedia_vi_get_pipe_low_delay_attr：get the low-latency attributes of a physical VI PIPE.
• xmedia_vi_query_pipe_status：query the status of a VI PIPE.
• xmedia_vi_set_pipe_vc_number：set the VC number of a physical VI PIPE for the connected sensor or AD.
• xmedia_vi_get_pipe_vc_number：get the VC number of a physical VI PIPE for the connected sensor or AD.
• xmedia_vi_set_pipe_mirror_flip：set mirror/flip output for a physical VI PIPE.
• xmedia_vi_get_pipe_mirror_flip：get mirror/flip output for a physical VI PIPE.
• xmedia_vi_set_chn_config：set VI channel configuration.
• xmedia_vi_get_chn_config：get VI channel configuration.
• xmedia_vi_enable_chn：enable a VI channel.
• xmedia_vi_disable_chn：disable a VI channel.
• xmedia_vi_set_chn_crop_attr：set the crop attributes of a VI channel.
• xmedia_vi_get_chn_crop_attr：get the crop attributes of a VI channel.
• xmedia_vi_set_chn_compress_mode：set the output compression mode of a VI channel.
• xmedia_vi_get_chn_compress_mode：get the output compression mode of a VI channel.
• xmedia_vi_set_chn_frame_rate：set frame-rate control for a VI channel.
• xmedia_vi_get_chn_frame_rate：get frame-rate control for a VI channel.
• xmedia_vi_set_chn_depth：set the queue depth for frames acquired from a VI channel.
• xmedia_vi_get_chn_depth：get the queue depth for frames acquired from a VI channel.
• xmedia_vi_set_chn_ldc_attr：set lens distortion correction (LDC) attributes for a VI channel.
• xmedia_vi_get_chn_ldc_attr：get lens distortion correction (LDC) attributes for a VI channel.
• xmedia_vi_set_chn_spread_attr：set the spread attributes of a VI channel.
• xmedia_vi_get_chn_spread_attr：get the spread attributes of a VI channel.
• xmedia_vi_set_chn_low_delay_attr：set the low-latency attributes of a VI channel.
• xmedia_vi_get_chn_low_delay_attr：get the low-latency attributes of a VI channel.
• xmedia_vi_set_chn_wrap_attr：set the wrap attributes of a VI channel.
• xmedia_vi_get_chn_wrap_attr：get the wrap attributes of a VI channel.
• xmedia_vi_set_chn_dis_config：set the DIS configuration of a VI channel.
• xmedia_vi_get_chn_dis_config：get the DIS configuration of a VI channel.
• xmedia_vi_set_chn_dis_attr：set the DIS attributes of a VI channel.
• xmedia_vi_get_chn_dis_attr：get the DIS attributes of a VI channel.
• xmedia_vi_set_chn_fov_correction_attr：set field-of-view correction attributes for a VI channel.
• xmedia_vi_get_chn_fov_correction_attr：get field-of-view correction attributes for a VI channel.
• xmedia_vi_set_chn_fisheye_attr：set fisheye attributes for a VI channel.
• xmedia_vi_get_chn_fisheye_attr：get fisheye attributes for a VI channel.
• xmedia_vi_fisheye_pos_query_dst_to_src：map an output coordinate of fisheye correction back to the source coordinate.
• xmedia_vi_set_chn_stitch_attr：set pre-stitch correction attributes for a VI channel.
• xmedia_vi_get_chn_stitch_attr：get pre-stitch correction attributes for a VI channel.
• xmedia_vi_select_chn_frame：check whether a frame is available in the output channel queue.
• xmedia_vi_acquire_chn_frame：acquire a captured frame from a VI channel.
• xmedia_vi_release_chn_frame：release a frame acquired from a VI channel.
• xmedia_vi_set_ext_chn_config：set extended channel attributes for VI.
• xmedia_vi_get_ext_chn_config：get extended channel attributes for VI.
• xmedia_vi_attach_pipe_vb_pool：bind a memory pool to a pipe.
• xmedia_vi_detach_pipe_vb_pool：unbind the memory pool from a pipe.
• xmedia_vi_attach_chn_vb_pool：bind a memory pool to a channel.
• xmedia_vi_detach_chn_vb_pool：unbind the memory pool from a channel.
• xmedia_vi_attach_ainr_vb_pool：bind a memory pool to a pipe's AINR output.
• xmedia_vi_detach_ainr_vb_pool：unbind the memory pool from a pipe's AINR output.
• xmedia_vi_get_pipe_fd：get the pipe file descriptor.
• xmedia_vi_get_chn_fd：get the channel file descriptor.
Tip
See sample_vio for a working example.
